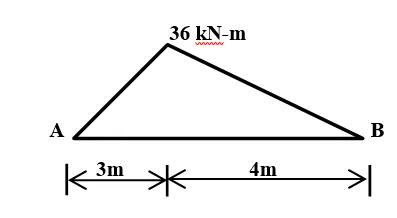

Q. A simply supported beam AB has a clear span of 7 meter. The bending moment diagram (BMD) of the beam due to a single concentrated load is shown in the figure below.
The magnitude of the concentrated load in kN is____________.
