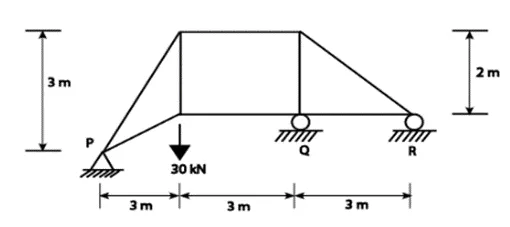

Q. Consider the pin-jointed plane truss shown in the figure (not drawn to scale). Let R_P, R_Q, and R_R denote the vertical reactions (upward positive) applied by the supports at P, Q, and R, respectively, on the truss. The correct combination of (R_P, R_Q, R_R) is represented by

(A) (30, –30, 30) kN

(B) (20, 0, 10) kN

(C) (10, 30, -10) kN

(D) (0, 60, -30) kN

Ans: (30, -30, 30) kN

Solution:

The correct option isC(30, -30, 30) kN

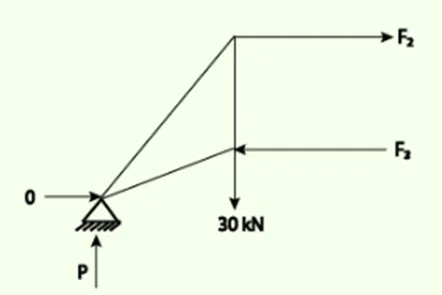

∑FH=0
F = 0 … (i)

∑FV=0
P = 30 ….(ii)

∑FH=0
F2=F3 ….(iii)
F2×3+30×3−F3×1=0
F2×3−F2×1+90=0
2F2=−90
F2=−45
⇒ F3=−45

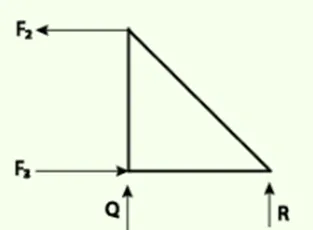

Q + R = 0…(iv)
F3×2+R×3=0
-45 ×2+R×3=0
R = 30 ⇒ Q =-30
