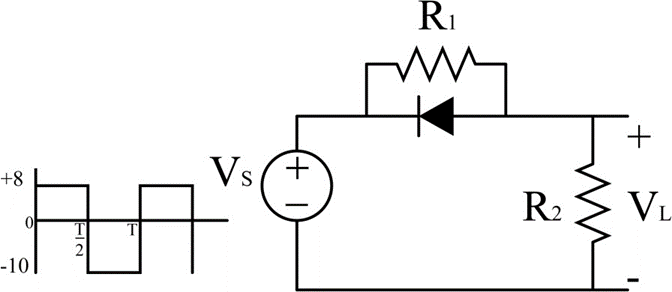

In the circuit shown, 𝑉𝑠 is a square wave of period 𝑇 with maximum and minimum values of 8 V and -10 V, respectively. Assume that the diode

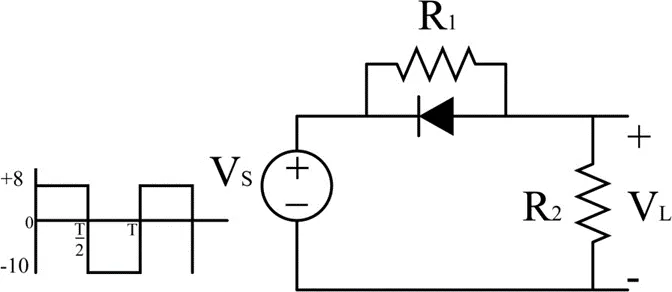

Q. In the circuit shown, 𝑉_𝑠 is a square wave of period 𝑇 with maximum and minimum values of 8 V and -10 V, respectively. Assume that the diode is ideal and 𝑅₁ = 𝑅₂ = 50 Ω. The average value of 𝑉_𝐿 is______volts (rounded off to 1 decimal place).

Ans: -3.1 – -2.9
