Q. In the circuit shown, the clock frequency, i.e., the frequency of the Clk signal, is 12 kHz. The frequency of the signal at Q2 is_______kHz.

Ans: 4

Solution:

let Initial states be Q1 = Q2 = 0

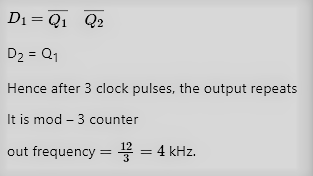

screenshot 525 in the circuit shown, the clock frequency, i.e., the frequency of the clk signal, is 12 khz. the frequency of the signal at q2 is
In the circuit shown, the clock frequency, i.e., the frequency of the Clk signal, is 12 kHz. The frequency of the signal at Q2 is 4
