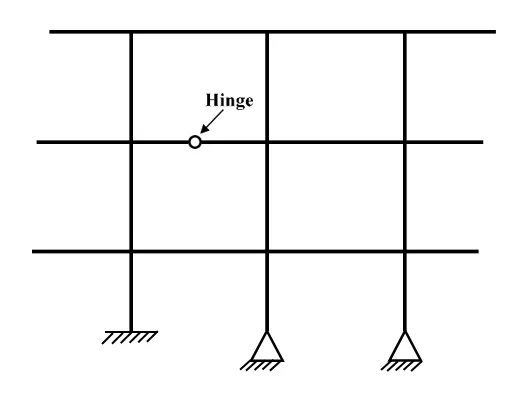

Q. The degree of static indeterminacy of the plane frame as shown in the figure is
Solution:
(Total R’ = 2)
Ds=3C−R′
C=6
Ds=(3×6−2)−1(due to hinge)
=15
